Back - Lit Film 2.5M / 3.2M Eco Solvent Printing Machine CMYK 4 Color Printing

China Back - Lit Film 2.5M / 3.2M Eco Solvent Printing Machine CMYK 4 Color Printing supplier

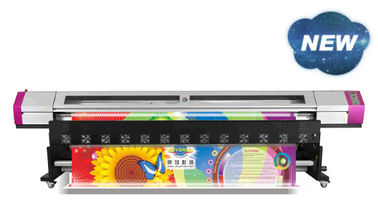

Large Image :  Back - Lit Film 2.5M / 3.2M Eco Solvent Printing Machine CMYK 4 Color Printing

Product Details:

Place of Origin: CHINA
Brand Name: freecolor
Certification: CE
Model Number: UD161LC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wood box
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month
Detailed Product Description
Print Size: 1.6m/1.8m/2.5m/3.2m Color: C M Y K
Ink Type: Eco Solvent Ink Head Type: Epson DX5 1 Or 2
Print Resolution: 1440dpi Max.

Back - Lit Film 2.5M / 3.2M Eco Solvent Printing Machine CMYK 4 Color Printing







Full aluminum platform / Bearing rail, stable and long durability



MODEL UD-161LC
Printhead Epson DX5
Number of printhead 1 Head
Maximum print width 1,600mm
Print Speed (m2/h) Print mode Output(m2/h)
R.Draft 2Pass
29
Draft 3Pass
19
Standard 4Pass
14
Quality 6Pass
9
High Quality 8Pass
7
Back-lit 12Pass
4
Ink     Type: Water based / Eco Solvent Ink
Color : 4 Color (C,M,Y,K)
Capacity: 1L per Main Tank of Each Color
Ink Supply System Auto Ink Supply System
Media Width Maximum 1,680mm
MODEL UD-161LC
Media Type Vinyl, Polyester, Flex, Back-lit Film, PS Board, KT Board, PVC Board, etc.
Auto Media Feeding System Equipped (Max. Media Weight 25kg)
Auto Cleaning System Anti-clogged Flash Function & Capping System
Pre-heating & Drying System Equipped
Clamp Equipped
Print Interface USB 2.0
Printhead Height 2 to 6 mm from Media
RIP Software Ultraprint, Maintop, Photoprint, Wasatch, Ergosoft
Input Power AC 220V, 50Hz/60Hz
Machine Dimension / N.W L2,820 x W990 x H1,260mm / 200KG
Package Dimension / G.W L2,860 x W1,050 x H685mm / 377KG

The Speed data varies in different computer.
Inkjet printer prints with fine ink dots, so the printing colors may be different along with the change of printheads. When printing with serveal printers at the same time, a difference in printing colors may exists due to a difference exist in every single printer.



Back - Lit Film 2.5M / 3.2M Eco Solvent Printing Machine CMYK 4 Color Printing
