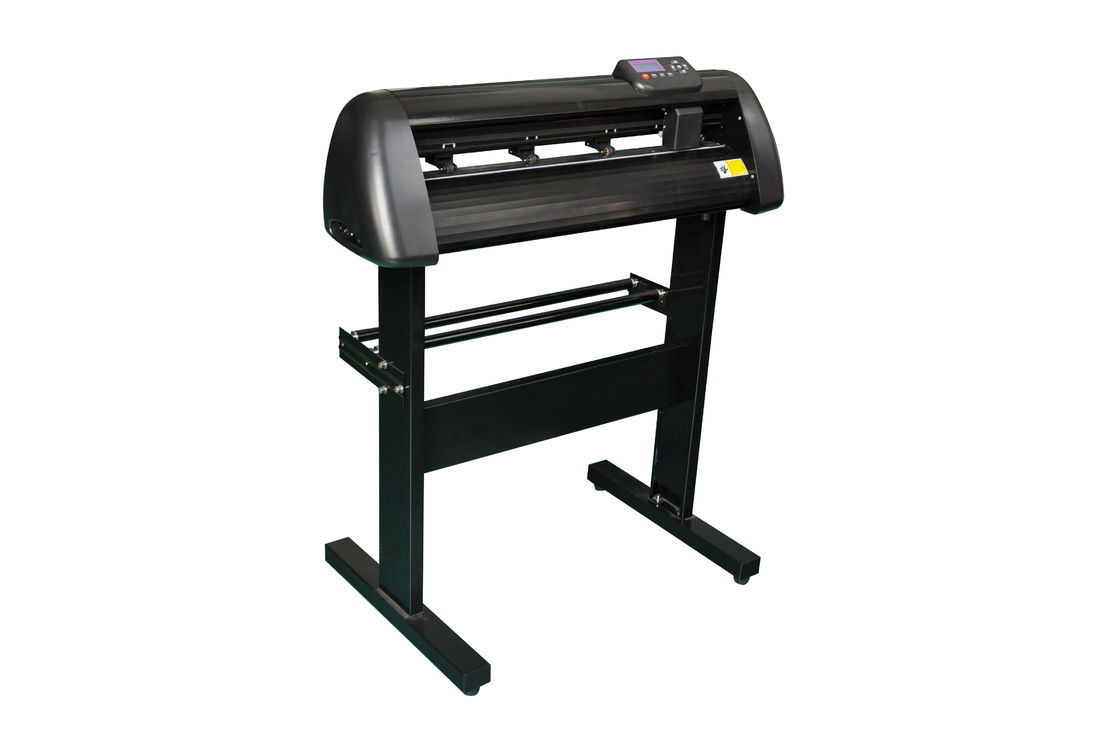

1000mm / S Vinyl Stiker Cutter Plotter Machine With Servo Motor

China 1000mm / S Vinyl Stiker Cutter Plotter Machine With Servo Motor supplier
1000mm / S Vinyl Stiker Cutter Plotter Machine With Servo Motor supplier 1000mm / S Vinyl Stiker Cutter Plotter Machine With Servo Motor supplier 1000mm / S Vinyl Stiker Cutter Plotter Machine With Servo Motor supplier 1000mm / S Vinyl Stiker Cutter Plotter Machine With Servo Motor supplier 1000mm / S Vinyl Stiker Cutter Plotter Machine With Servo Motor supplier

Large Image :  1000mm / S Vinyl Stiker Cutter Plotter Machine With Servo Motor

Product Details:

Certification: CE
Model Number: ZS-48ASF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: carton box
Delivery Time: 3-5 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
High Light:

plotter cutting machine

,

printer plotter cutter

1000mm / S Vinyl Stiker Cutter Plotter Machine With Servo Motor





Description



The cutter plotter can cut vinyl, non-dried glue labels, card papers, and film papers.It is used to make paper models, joined graphs, stereo congratulation cards, and name cards, cartoon stamps, etc. It is delicate and cabinet, much appropriately used in stores, offices, schools and families, especially in Europe and America countries, many families buy it to help their children to enhance their intellectual faculties.



The cutter plotter adopts the control system with independent intellectual property, solves the problem of the cutting length of the traditional cutting plotter is limited by the byte and makes the cutting length of the machine reach over 100m. The strait line engine control pen solves the problem of the traditional ones easy to be destroyed and largely enlarges the cutting precision. The driver can making the use more convenient and use the international famous engraving software to output engrave. This machine adopts many kinds of soft ware which greatly raises the speed of data transmission and engraving.





Feature:



1. Advanced paper transferring roller, not limited for length and wear resistance;

2. Unique head design, accurate cutting and stable moving,realized accurate,smooth,and high-speed cutting;

3. One lever in behind control all of the pinch roller up and down at the same time,easy to operate;

4. Blade force and speed can be adjusted without stopping the machine;

5. High speed calculation microprocessor, stable running, low noise, and high precision;

6. Streamline design, strong aluminum alloy body with especial treatment, never fade out;

7. Serial port/USB port, USB port support to plug in and out when the power on;

8. Chinese and English operation interface;

9. Liquid crystal backlight display with high definition characters is adopted to different working environment;

10. Advanced paper-transfer roller provides a high-precision and wear-resistant function.

11.Contour cutting function(optional).



Specification:



Model item

 ZS-24ASF

 ZS-48ASF

Max.paper width

 720mm

 1350mm

Max.cutting width

 630mm

 1260mm

Gross Weight (kg)

 25.8

 42kg

Packing Size (cm)

 101.5*34*47.5

 156.5*34*47.5

Stand

 Iron Stand+Media basket

 Iron Stand+Media basket

Interface

                RS232 Serial port + USB port + U disk

Memory

                                    4M

Motor

                                    Servo motor

Feed roller

                                     Steel feed roller

Command set

                               DMPL/HPGL

Power supply

                                     AC90V~AC240V

Working Environment

             5C °  -35C °  ,    5%-95% (Non Condens ation)

Compatible system

Windows XP / Windows Vista / Windows7 / Windows8 (32bit & 64bit) / Mac





Our service:



1.One year warranty on whole machine/parts.

2.Professional service before and after sale.

3.Supply training video and user' s manual in English.

4.Long-term support for the software and machine maintenance.

5.Free lifetime technology support on all orders.
