Product Details:
Payment & Shipping Terms:
|
Print Size: | 1.8m + Front And Back Table | Color: | C M Y K Or C M Y K White |
---|---|---|---|
Ink Type: | UV Curing Ink | Head Type: | Ricoh Gen4 / Genn5 Or Epson DX7 |
Print Resolution: | 1440dpi Max. | ||
High Light: | uv flatbed printer,uv digital printer |

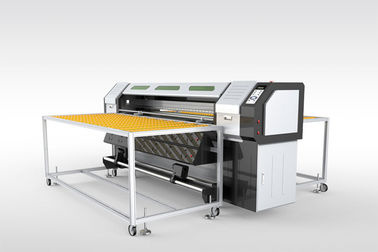

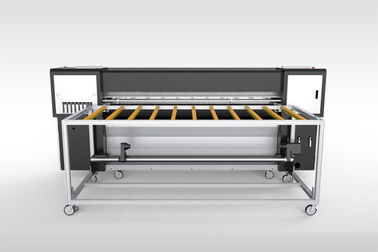

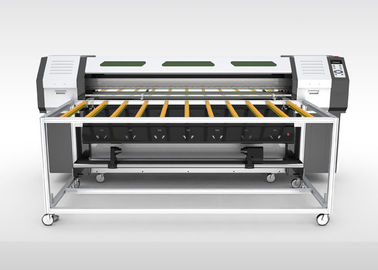

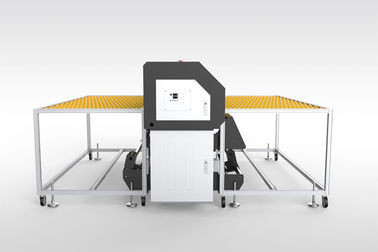

High Speed 1440 DPI Roller UV Printing Machine 8 Color Printing
Description:
R180 roll to roll and flatbed printer is a new printing machine which combined flatbed printer with inkjet printer in one machine, along with all features and advantages of flatbed printer and inkjet printer. continuing XENONS consistent style of superior material, exquisite workmanship and stable production.
R180 is equipped with thefeeding and take up system or roll printing, and also comes with front and back extension platform for plate printing.
The conveyor feeding system can convey both rigid and flexible media accurately. It can print roll and plate material at the same time.
Feature:
1. The vacuum system controls the whole printing platform to remain media smoothwithout wave, and make true of “edge to edge” printing.
2. Print both rolls and plate materials, efficiently solve the problem of printing rolls and plate materials in one machine, it's mainly used in advertising, photographic studio, decoration and other industries;
4 color, 6 color , 8 colorCMYK+W printing (C,M,Y,K,LC,LM LK,LLK,CMYK+W )
3. Full range of air-suction function, it is convenient for the transmission of rolls and plate materials.
Intelligent infrared heating, which can automatically shut down the heating system whilethe machine stopprinting, very safe and reliable.
4. With advanced servo control system, ensure the accuracy of the printing position and consistency, very long length material can be also transmitted smoothly.
5. Efficient on-line material drying system, fast drying the materials.
6. Perfect design of ink system and nozzle moisturizing device, ensure the continuity and quality of printing;
7. High resolution and high speed to satisfy different customers with different orders, realizing the rapid production of the batch, varieties and more personalized.
8. Support a variety of image formats and software, such as JPG/TIFF/AI/EPS/PS;
9. With advanced servo control system, ensure the accuracy of the printing position and consistency, very long length material can be also transmitted smoothly.
10. High speed data processing and transmission;
11. Adopt professional RIP, enhance production efficiency greatly;
12. Adopt advanced band conveyor device and printhead adjustable device.It can adjust the height of cleaning system and carriage at the same time, it could fit all kinds of cloth thickness, Flat board material.
Max printing thickness is 30mm;
13. Standard tension rail take-up system, Auto take-up system;
14. Intelligent vertical location in the front and back;
15. Special anti-collision mechanism for carriage, lengthen the lifetime of printhead.
Specification:
Model |
R180E-UV |
Appearance color |
black |
Printhead type |
Ricoh GEN5 |
Printhead number |
4 pcs or 5 pcs |
Ink type |
UV |
Colors |
KK CC MM YY or C M Y K W |
Ink specification |
1000ML |
Print maxnum width |
1800mm |
heat system |
LED UV lamp system |
RIP software |
Maintop/PP/Wasatch |
Operate environment |
Temperature: 15 to 35℃ (20 to 32℃ suggest) Humidity:20 to 80% (40 to 60% suggest) |
Electric specification |
AC 100-120V or 200-240V 50-60Hz |
Main allocation |
|
Data interface |
USB2.0/3.0 OPTIC FIBER |
HCI window |
Single color LCD |
Machine language |
English |
Motor |
Leadshine AC servo |
Guide rail |
THK |
Ink supply way |
Gard guillotine |
Main beam |
Aluminium magnesium alloy profiles |
Fan drying system |
high-power & nulti-section air suction system |
Roller pater structure |
- |
Subsidiary platform |
Standard front and rear subsidiary platform |
Power input |
High-power filter |
Electric brand |
Mingwe power supplyYILIJET control system |
Producetion specification |
Appearance size(L*W*H)3160*1130*1330 Pakage size(L*W*H)3350*800*1500 |
Weight(KG) |
About 400KG |
Support update |
- |
Standard |
Constant tension takeup system |
Application:
1.8m fast speed UV flatbed and roll to roll printing machine with Ricoh Gen5 head
Glass, aluminum, panels, wood, wall panel, ceiling, organic board, leather, canvas
ceramics, corrugated board, foam board, metal plates ,plastic, brick,stone etc rigid board printing
After-sale-service:
1. Provide 24 months warranty for print boards and motors for our printers and online support
2. When you have some technical problems,please send detail description,photos or video,then our technician will give the resolution accordingly during 24 hours.
3. There are completed English user manuals to guide you easily install ,operate and maintain the printer. It’s clear and easy to understand.
4. Free training is availabe when you need it, you are welcome to our factory to obtain the skills. or we also send engineer to your company to make a training for your people.
with 15 years export experience in the large format printers industry, High quality, safe packing, on-time delivery and good after service are OUR KEY.
