1440 DPI UV Flatbed Printer , Ricoh Gen5 Heads Rigid UV Printing Machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Ink Type: | UV Curing Ink | Print Size: | 2.68*1.22m |
|---|---|---|---|
| Head Type: | Ricoh Gen5 | Print Resolution: | 1440dpi Max. |
| Color: | C M Y K Lc Lm White | ||
| High Light: | uv digital printer,uv led printer |
||
1440 DPI UV Flatbed Printer , Ricoh Gen5 Heads Rigid UV Printing Machine

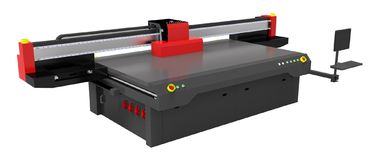

Description of RT2513G-UV Flatbed Printer
RT2513G-UV is Refretonic latest developed UV flatbed printer. With 2.5m*1.3m print size,it’s powerful as expected by using 2+1 Ricoh GEN5 Print heads. All parts of itare of world class with delicate design! Print speed can reach as high as 45sqm/h and its output present attractive resolution like professionalphotograph!
RT2513G-UV adopt more energy-efficient LED UV curing method. It can print without pre-heat and you can start and stop printing work anytime during printing. Moreover, ink used is environmental, no smell, immediate curing and hard to fade. LED UV Flatbed Printer adopt vacuumsuction design to avoid wrinkles of media edge, easy to operate without anypost processing. It can print all color at once and printing effect is perfect! Under the help of this machine, you can achieve lower cost and higher return with the same effort!
The applications of UV flatbed printer
The work efficiency and printing quality of UV flatbed printer are very high. It can print all kinds of flat and rigid media such as glass, floor tile, ceiling, ceramic, organic glass,acrylic, polypropylene hollow sheet, corrugated paper, wood board, aluminum-plasticboard, aluminum, doors, PS board, PVC board, PP board, ABS board,fire-resistant board, foam board, PVC foam board, Chevron board, ceramic tileand flexible media such as: cloth, leather, wallpaper, reflective film, canvas,carpet, PVC cloth, etc. This production process can print whatever you want with fast speed and high resolution!
Industry Application Of LED UV Flatbed Printer
LED UV Flatbed Printer can be used forvarious industries such as, Home and Office Decoration, Electric Appliances Shell,Wall Decoration, Furniture, Pottery and Porcelain Tile, Gift, 3C Product, Oil Painting and Fresco, Sliding Door and Wood Door, Wedding Photography, Mark and Signs, Exhibition.
Specification:
| Mode Type | Flatbed UV Printer RT-2513G | ||
| Print Head | Ricoh GEN5 7PL(Piezoelectric Printhead GEN 5 7PL) | ||
| Print Technology | Bidirectional | ||
| Resolution | 600,900,1200,1800,2400Dpi | ||
| Color | CMYK Or CMYK Lc Lm ( White color and Varnish are Optional) | ||
| Printing Height | Panel:≤ 110mm | ||
| Printing Weight | Panel:≤ 45 kg/m2 | ||
| Printing Size | 2680mm*1220mm | ||
| Table | Vacuum Suction Table | ||
| Printing Speed | Up to 50 m2/h (8 heads double 4 color) | ||
| Material | Application Type |
Glass, Plexiglass, Aluminum Panels, Wood, Wall Panel, PVC Panels, Ceiling, Organic Board, Ceramics, Corrugated, Chevron Board, Corrugated Board, Foam Board, Metal Board, Fiberboard, Plastic, Brick, Stone, Home And Office Decoration, Electric Appliances Shell, Wall Decoration, Furniture, Pottery And PorceLain Tile,Gift, 3C Product,Oil Painting And Fresco, Sliding Door And Wood Door, Wedding Photography, Mark And Signs, Exhibition,Etc. |
|
| Ink | Type | Enviromental protective UV ink | |
| System | 2.5L drums, Automatic ink control, Non-stop and ink | ||
| Outdoor Life | Indoor 10years Outdoor 5years | ||
| Interface | USB | ||
| Power | Power Voltage | AC,50HZ/60HZ.220V (±10%)>15A | |
| RIP Software | Photoprint/Caldera Optional | ||
| Printing Environment | Temperature 15-30 Degrees, Humidity 40-80% | ||
| Safety Certification | CE Certification | ||
| Picture Type | TIFF,BMP,PDF,EPS,JPEG,Postscript3,AI, etc | ||
| Packing Dimension | 5.40m*2.20m*1.65m+4.75m*2.50m*1.43m | ||
| Net Weight | 960kg | ||
| Gross Weight | 1590kg |
||
Advantages:
|
Media Fixed Form |
Four-section suction and hard anodizing platform. The high accuracy of platform surface is within 0.30 mm. |
|
Print Size |
2.68x1.22m |
|
Type of print heads |
RICOH GEN5 |
|
Media thickness |
within120mm |
|
Ink |
Imported UV ink |
|
Motor type on X axis |
Japan Fuji servo motor (750W) |
|
Motor type on Y axis (double servo motors) |
Japan Fuji servo motor (400W/PCS) (double servo motors) |
|
Servo controller on X axis |
Japan Fuji servo driver |
|
Servo controller on Y axis (double servo drivers) |
Japan Fuji servo driver (double servo drivers) |
|
Lead screw(double) |
Taiwan Yintai (40 guide rail) |
|
X guide rail (double rails) |
Japan THK Rail |
|
Carriage up-down rail |
Taiwan HIWIN Rail |
|
Carriage lifting motor |
Leadshine double extension shafts stepper motor |
|
Platform air suction fan (Double suction fans) |
Taiwan Shenghong(with pressure-relieving valve & silencer) |
|
Belt in X axis |
Italy Magadyne belt |
|
Control valve of UV lights shutter |
Japan Koganei |
|
Solid-state relay for UV lights power control |
Shanghai Fushen |
|
UV light pipe |
Original light pipe from the UK |
|
Main ink bottles |
2.5 L (with liquid level alarm system) |
|
Main Filters |
Cobetter (5.0um) |
|
Negative pressure control system (double control systems) |
Circuit board integrated control (double control systems) |
|
Negative pressure meter (double) |
Japan Panasonic |
|
Photoelectric sensors on X & Y axis |
Japan Omron |
|
Drag chain |
German Igus chain |
UV flatbed printer RT2513 with Ricoh Gen5 heads for rigid materials printing Application:
Glass, Plexiglass, Aluminum Panels, Wood, Wall Panel,
PVC Panels, Ceiling, Organic Board, Ceramics, Corrugated,
Chevron Board, Corrugated Board, Foam Board, Metal Board,
Fiberboard, Plastic, Brick, Stone, Home And Office Decoration,
Electric Appliances Shell, Wall Decoration, Furniture,
Pottery And PorceLain Tile,Gift, 3C Product,Oil Painting And Fresco,
Sliding Door And Wood Door, Wedding Photography,
Mark And Signs, Exhibition,Etc.
Package and shipping information:
|
PRODUCT FEATURES: 1) Item Model: Flatbed UV Printer RT-2513G 2) Machine Body Materal: Aluminum Alloy and Stainless Steel 3) Printhead: Ricoh GEN5 4) Resolution: 1200*1200Dpi 5) Size of Ink Droplet: 7-21PL 6) RIP Software: PhotoPrint, Caldera Optional |
||
| Packaging Details:
1) Package Dimensions:5400*2200*1650mm 2) Quantity/Package: 1 Set 3) 20GP/40GP: 1/2 Sets 4) Gross Weight: 1590Kg |
|
|
| CERTIFICATION: | |
|
| LOGISTICS ABILITY:
SHANGHAI ZHENSHI Industry Arranges the Mixed Logistical for delivery as By Sea, By Air and By Truck or Train, Over 10 Years’ Experience for Logistical Arrange.
MANUFACTORY SCALE:
The Total Manufactory Area: 30,000 square meters (322,916 square feet) Production Staff: 158 to 168 QC Staff: 5 to 8 R&D: 10 to 15
DELIVERY TIME:
1) Material Preparation Time: Instock Any Time 2) Spare Parts Preparation Time: Instock Any Time 3) Metal Processing Time: 5 days 4) Assembly & Testing & Packaging Time: 2 days 5) Total Delivery Time: 7 days for 1 set for safe delivery lead time The Faster Delivery Could be Negotiable Sometimes!
USAGE/OCCASION Furniture Industry , Advertising Industry ,Wood Panel, Aluminum Panel, Ceiling Panel, Glass, Ceramics, Acrylic, PVC, Etc. |
After-sale-service:
1. Provide 24 months warranty for print boards and motors for our printers and online support
2. When you have some technical problems,please send detail description,photos or video,then our technician will give the resolution accordingly during 24 hours.
3. There are completed English user manuals to guide you easily install ,operate and maintain the printer. It’s clear and easy to understand.
4. Free training is availabe when you need it, you are welcome to our factory to obtain the skills. or we also send engineer to your company to make a training for your people.
with 15 years export experience in the large format printers industry, High quality, safe packing, on-time delivery and good after service are OUR KEY.
