1.8M Heavy Duty Eco Solvent Printer With Epson 5113 / Ricoh Gen5 Head

Because we have offers excellent prices attractive, but i told you earlier that we prefer to dealing with you always with the confidence of both par..

—— Mohamad

Even i'm working on other machine order which i told you, it will come in May.

—— Sai

I'm Online Chat Now

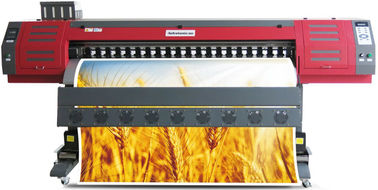

1.8M Heavy Duty Eco Solvent Printer With Epson 5113 / Ricoh Gen5 Head

China 1.8M Heavy Duty Eco Solvent Printer With Epson 5113 / Ricoh Gen5 Head supplier
1.8M Heavy Duty Eco Solvent Printer With Epson 5113 / Ricoh Gen5 Head supplier 1.8M Heavy Duty Eco Solvent Printer With Epson 5113 / Ricoh Gen5 Head supplier 1.8M Heavy Duty Eco Solvent Printer With Epson 5113 / Ricoh Gen5 Head supplier

Large Image :  1.8M Heavy Duty Eco Solvent Printer With Epson 5113 / Ricoh Gen5 Head

Product Details:

Certification: CE/ISO
Model Number: HP-RT1807DE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wood box
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Print Width: 1.8m / 3.2m For Choice Print Head: Epson DX5 / DX7 / 5113 / Ricoh Gen5 For Choice
Resolution: 1440dpi Max. Speed: 11-60 Square Meter / Hour
RIP: Iprint ( Photoprint, Wasatch, Maintop) Print Materials: Adhesive Vinyl / Flex Banner / Canvas / Photopaper Etc
Ink Color: C M Y K Ink Type: Eco Solvent / Water Base / UV
Ink System: Continuous Ink Supply System
High Light:

Solvent Printing machine


eco solvent inkjet printer

1.8M Heavy Duty Eco Solvent Printer With Epson 5113 / Ricoh Gen5 Head





RT-1807DE EcoSolvent Printer is 2015 Deluxe Version of high precision Micro PiezoPrinter which with 1.8m printing width, high resolution printing for outdoor and indoor large format printer. The printing quality is competitive to the Japanese eco solvent printer brands like, Epson Eco solvent printer,Roland printer, Mimaki Eco solvent Printer and Mutoh Eco solvent Printer.1440dpi overturns thehighest resolution of traditional solvent printers, which leads the resolutionof large format printing to a new standard. Your new profit pattern will be established and new business opportunity will be discovered.



1. This Eco Solvent Printer equipped with two Dx5 or Dx7 printhead (two Ricoh Gen5 print heads or Epson 5113 heads are optional), Standard printing withdouble heads to meet the demand of high resolution and faster speed.


2. This Eco Solvent Printing Machine through different quality tests isstable and competent enough for mass production requirement.


3. This Eco Solvent Printer equipped with intelligentinfrared heater and fan drying system.


4. The LED UV printing system is optional; you may upgrade this Eco SolventPrinter to a LED roll-to-roll UV Printer once demanded.


5. This Eco Solvent Printer adopts  Aluminum-Alloy girder, which is much stronger and smoother  than other metal materials, ensuring you high precisionprinting quality.


6. As a top quality Eco Solvent Printer, RT- 1807DE adopts THK 20mm width linearguide rails with double-slider and sound off function, more durable andreliable for high precision printing.


7.This Eco Solvent Printer owns strong heavy-duty machine body (double stands and feet composite ),without any shake,ensures stable printing for long time work.


8. We provide automatic feeding and collectingstructure to this Eco Solvent Printer, especially adopts all-aluminum dual power take up system to carry the whole weight of media morestably and easily media feed in and take up. Professional soft film collecting and feeding system is optional too.


9.Media sensor for test media when media is going to running out.


10.Anti-collision performance was also equipped on this Eco Solvent Printer. Whenthe sensor installed on the both sides of the carriage detect the position ofthe print head is lower than the thick medium, the carriage will initiate animmediate stop to protect the print heads.


11.Automatic capping system is easy operation and maintenance for our Eco SolventPrinter


12.Bulk ink supply system is standard option for our Eco Solvent Printer, which issetting on top, easy to monitor ink level and easy ink refill.


13.Our Eco Solvent Printer adopts USB 2.0 interface control system that get betterlarge data transfer and anti-signal interference. Otherwise, it is alsosupporting windows7/64bit.


14.This Eco Solvent Printer adopts metal optical cable from main board to carriageboard, to make sure fast and stable data transit.


15.This Eco Solvent Printer equipped with two original Lead shine Motor Control,which provide more stable quality and better efficiency.


16.This Eco Solvent Printer adopts six or more variable droplet printingtechnology; the highest printing resolution is up to 2880dpi.


17.This Eco Solvent Printer also adopts VSDT variable droplet technology, thesmallest droplet can reach as 3.5pl, but the maximum is 27pl, which presentingperfect printing quality.


18.As the top quality Eco Solvent Printer in China, we also adopt widened 65mmRoller System instead of 40mm roller, which is 25mm wider than normal roller.This 65mm Roller System can provide excellent control of media feeding,ensuring high precision of large format printing.


1.8M Heavy Duty Eco Solvent Printer With Epson 5113 / Ricoh Gen5 Head


Product Parameter:


Print Head

Two DX7/DX5 Drop-On-Demand Micro-Piezo Print Heads

Number Of Nozzles

2880 Nozzles (2 Heads)


4 Colors:Cyan, Magenta, Yellow, Black


1440dpi (Max)/1440dpi

Height Of Print Head


Size Of Ink Droplet

1.5-21 Pl

Max. Print Width


Max. Media Width

1900mm (Max)/1900mm

Real Time Tracking


Printing Speed


44.0sq.M Per Hour


32.0sq.M Per Hour


22.0sq.M Per Hour


16.0sq.M Per Hour


11.0sq.M Per Hour

Media Feeder


Media Take-Up



Max Weight


Application Type

Flex,Banner,Knife Coated Substrate,Double Side Printing Banner PVC,Advertising Cloth,Adhesive Vinyl,One Way Vision, Mesh,Reflective Banner,Reflective Vinyl,Eco Solvent Media



Eco Solvent Ink,UV Ink,Sublimation Ink,Pigment Ink,Water Based Dye

Ink Tank Account

4*1.5Liter Continuous Ink Supply

Auto Cleanning System

Auto Cleanning System With Anti Clogged Flash Spray & Moisturizing Function

Picture Drying System

Fan Drying System, Infrared Heating

Media Adsorption

Multi-Section Intelligent Suction System With Adjustable Strength.




Power Voltage

AC220-240V 50-60HZ Or AC110-120V 50-60HZ

Control Software

Print Manager

RIP Software

Maintop (Photoprint Wasatch Optional)

Three Heating Sections

Pre-Heater, Printing Bed Heater, Rear Heater

Operation System

MS Windows XP & Windows 7

Printing Environment

Temperature: Temperature 18-32 Degrees, Humidity 46-65 Rh

Picture Type


Printer Dimension

W3200*D900 * H1350mm

Packing Dimensions

W3330*D1020 * H760mm

Net Weight


Gross Weight





1) Item Model: RT-1807DE

2) Machine Body Materal: Aluminum Alloy and Stainless Steel

3) Printhead: DX7 or DX5

4) Resolution: 1440dpi X 1440dpi

5) Size of Ink Droplet: 1.5-21pl

6)  RIP Software: Maintop, Photoprint, Wasatch

Packaging Details:

1) Package Dimensions: 3330 * 1020 * 760 mm

2) Quantity/Package: 1 Set

3) 20GP/40GP: 12/24 Sets

4) Gross Weight: 448Kg

  1.8M Heavy Duty Eco Solvent Printer With Epson 5113 / Ricoh Gen5 Head
CERTIFICATION:  1.8M Heavy Duty Eco Solvent Printer With Epson 5113 / Ricoh Gen5 Head

ZHENSHI Industry Arranges the Mixed Logistical for delivery as By Sea, By Air and By Truck or Train, Over 10 Years’ Experience for Logistical Arrange.


The Total Manufactory Area: 30,000 square meters (322,916 square feet)

Production Staff: 158 to 168      QC Staff: 5 to 8   R&D: 10 to 15


1) Material Preparation Time: Instock Any Time

2) Spare Parts Preparation Time: Instock Any Time

3) Metal Processing Time: 5 days

4) Assembly & Testing & Packaging Time: 2 days

5) Total Delivery Time: 7 days for 1 set for safe delivery lead time

The Faster Delivery Could be Negotiable Sometimes!


Sign Industry, Advertising Industry, Advertising Agency, Advertisement Company, Outdoor Digital Inkjet Printing, Indoor Digital Inkjet Printing.


Package and shipping information:


Item No.


Package Style

 Plywood Case Package & Stretch Film Inside

Printer Dimensions


Packing Dimensions




Weight G.W/N.W










wraps, indoor and outdoor signage, banners, decals and stickers, PERFORATE WINDOW, trade show graphics, wall decals and much more, efficiently and quickly.


1.8M Heavy Duty Eco Solvent Printer With Epson 5113 / Ricoh Gen5 Head


Factory information:


1.8M Heavy Duty Eco Solvent Printer With Epson 5113 / Ricoh Gen5 Head





1. Provide 24 months warranty for print boards and motors for our printers and online support


2. When you have some technical problems,please send detail description,photos or video,then our technician will give the resolution accordingly during 24 hours.


3. There are completed English user manuals to guide you easily install ,operate and maintain the printer. It’s clear and easy to understand.


4. Free training is availabe when you need it, you are welcome to our factory to obtain the skills. or we also send engineer to your company to make a training for your people.


with 15 years export experience in the large format printers industry,  High quality, safe packing, on-time delivery and good after service are OUR KEY.
