Steel Frame UV LED Printing Machine Automatic Digital Flatbed Printer
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Print Size: | 2.50*1.22m | Color: | C M Y K White |
|---|---|---|---|
| Ink Type: | UV Curing Ink | Head Type: | Epson DX5 / DX7 |
| Print Resolution: | 1440dpi Max. | ||
| High Light: | uv digital printer,uv led printer |
||
Steel Frame UV LED Printing Machine Automatic Digital Flatbed Printer
Description
- Applied all steel frame structure, better-structureframe made it highly stable and high-precision.
- Equipped full aluminum alloy platform, made withimported processing equipment, deliver spectacular accuracy of every printerplatform and outstanding durability.
- Equipped high-speed mute imported screw, highprecision low noise, wear proof and precise positioning.
- Use imported servo motors, guarantee mechanicalprecision and long duration. Also provide high resolution, accurate printposition, high stabilization, long lifetime and less cost.
- White Ink, Gloss Paint And Spot color OutputDirectly For LED UV Flatbed Printer

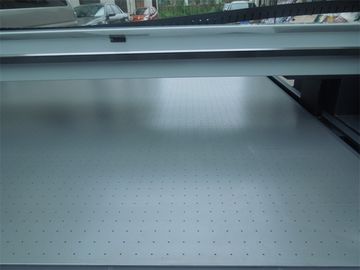

- Sectional Vacuum Suction Platform to adsorbdifferent materials.
High Precision Mute LinearGuide Rail, high stability, immensely decrease noise while printer is printing
Specification:
|
Model |
WT-2500UVF |
|
Printhead |
Epson Dx5/Dx7/Polaris head |
|
Printhead control |
Software automatically adjusts the nozzle and voltage |
|
Printhead height |
1-100mm(optional) |
|
Ink |
Type: UV ink Color: CMKY+White Cartridge capacity: 1000ml Ink supply: Automatic ink supply |
|
Color Management |
ICC or Density curve |
|
Print media |
Glass, aluminum, panels, wood, wall panel, ceiling, organic board, ceramics, corrugated board, foam board, metal plates ,plastic, brick,stone... |
|
Drying System |
UV light |
|
Print speed |
4PASS 720 dpi ×360 dpi (15 sq.m/h) 6PASS 360 dpi ×1080 dpi (9 sq.m/h) 8PASS 720 dpi ×720 dpi (6sq.m/h) 12PASS 720 dpi ×1080 dpi (3sq.m/h) |
|
Software |
Ultraprint / Maintop / Photoprint(optional) |
|
Operating system |
Windows XP / windows 7 |
|
Data interface |
USB2.0 |
|
Power supply |
50/60HZ 220V(30%)＞30A |
|
File Format |
BMP TIF JPG |
|
Temperature |
40%-60% |
|
Humidity |
15℃-28℃ |
|
Machine size |
L*W*H(4000*2000*1350mm) |
Economical UV flatbed printer WT2500UVF with Epson DX5 heads for rigid materials printing
Application:
Glass, aluminum, panels, wood, wall panel, ceiling, organic board,
ceramics, corrugated board, foam board, metal plates ,plastic, brick,stone etc rigid board printing
After-sale-service:
1. Provide 24 months warranty for print boards and motors for our printers and online support
2. When you have some technical problems,please send detail description,photos or video,then our technician will give the resolution accordingly during 24 hours.
3. There are completed English user manuals to guide you easily install ,operate and maintain the printer. It’s clear and easy to understand.
4. Free training is availabe when you need it, you are welcome to our factory to obtain the skills. or we also send engineer to your company to make a training for your people.
with 15 years export experience in the large format printers industry, High quality, safe packing, on-time delivery and good after service are OUR KEY.
